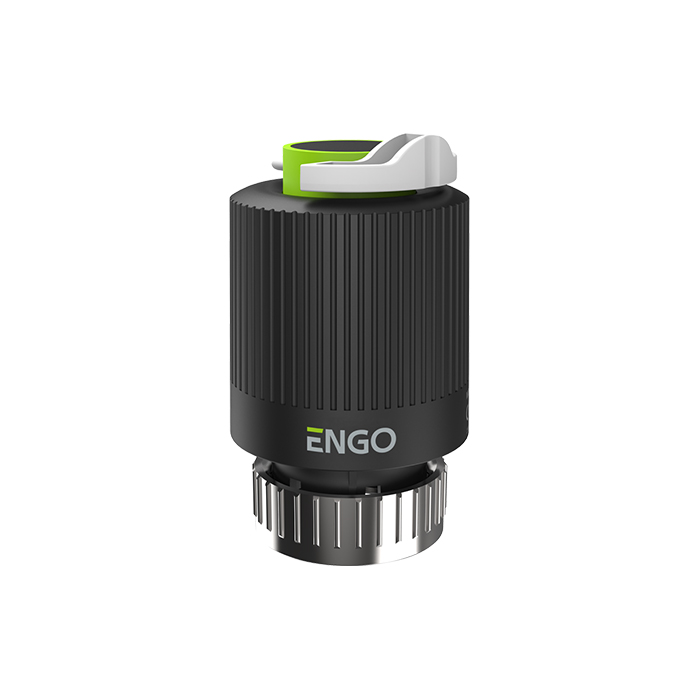

ENGO E28NC-230 thermoelectric actuator for underfloor heating manifolds, designed for heating system control. NC (normally closed) version with M28 x 1.5 mm thread and 230V AC 50Hz power supply. Features a pressing force of 100N and a maximum stroke of 4.5mm, with IP54 / Class II protection rating.
| Device type | Thermoelectric actuator |
|---|---|
| Version | NC (normally closed) |
| Thread | M28 x 1.5 mm |
| Power supply | 230V AC 50Hz |
| Power consumption | 2 W |
| Pressing force | 100 N ±20% |
| Protection class | IP54 / Class II |
